- Dimensions (HWD): 74x137x31mm(2.9x5.4x1.2in)
- Net Weight: 0.12kg (0.26lb)
- Operating Temperature: -25°C to 50°C (-13°F to 122°F)
- Storage Temperature: -25°C to 70°C (-13°F to 158°F)
- IP Rating: IP20

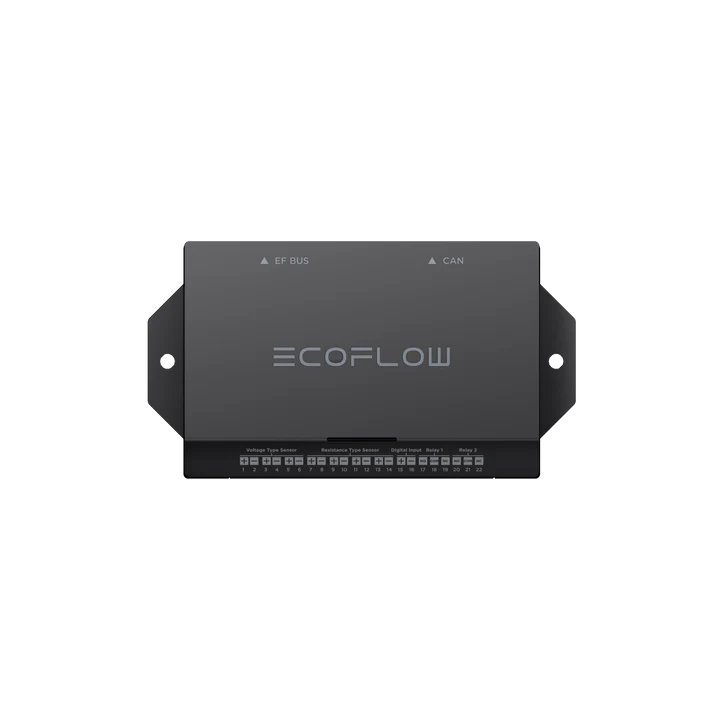

- Number of Inputs (Voltage Type Sensor): 3
- Range (Voltage Type Sensor): 0-35V
- Number of Inputs (Resistance Type Sensor): 3
- Range (Resistance Type Sensor): 10 - 100k
- Number of Inputs (Digital Input): 10
- Number of Inputs (Relay): 2
- Max. Voltage (Relay): 42.4V
- Max. Current (Relay): 1.75A
- Warranty: 5 Years
